CT5 START/STOP

Keep your START/STOP battery in peak condition.

  • Fully optimized for cars with Start/Stop technology, e.g. AGM and EFB batteries
  • No buttons to press – fully automatic charging
  • 5-year warranty
  • Simple to use with an easy to understand display
  • Reverse polarity protected
Enquire



Categories: ,

Description

Keep your START/STOP battery in peak condition

Fast Start/Stop charging

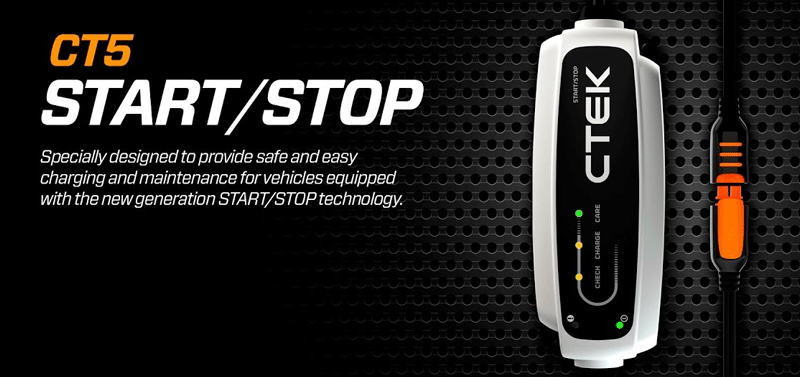

The CT5 START/STOP battery charger and maintainer has been specially designed to charge and maintain batteries in Start/Stop vehicles.

Start/Stop technology is great for the environment but it can put a considerable strain on your battery, especially if it’s in an older car. By keeping the battery fully charged, you can take full advantage of all the Start/Stop technology benefits, such as better fuel efficiency and lower CO2 emissions. If you only make short journeys, use the CT5 START/STOP once a month to keep your battery in peak condition. And if you’re going away on holiday, just connect the charger to the battery to make sure your car’s ready to go when you return.

Technical information

Input
220–240VAC, 50–60Hz, 0.5A max
Output
14.55V, 3.8A max
Back current drain*
Corresponding to less than 1.5Ah/month
Ambient temperature
-20˚C to +50˚C
Battery types
All types of lead-acid batteries, 12V, WET, MF, Ca/Ca, AGM, EFB, GEL
Battery capacity
14–130Ah
Warranty
5 years
Insulation class
IP65
Temperature compensation
Built in charge voltage temperature compensation according to ambient temperature.

Inside the box

CONNECT EYELET M6 (blackcable)

The easy fit connector for hard to reach batteries.

FAQ

I have an AGM battery but my car doesn’t have a start-stop system. Can I still charge the battery with a START/STOP charger?  ×

Yes, you can.

Is the START/STOP a simpler charger than the MXS 5.0? It has only three lights while the MXS 5.0 has eight.  ×

No. On the MXS 5.0 a light shows for every step, and the voltage and power curve is shown above and below the lights. On the START/STOP we’ve chosen to reduce the number of lights and instead just show which phase the charger is currently in – Check, Charge or Care. START/STOP has no programme selection. Instead, when it is in contact with a battery it starts as soon as it’s plugged into a wall socket.

Can I charge my battery through the cigarette lighter socket?  ×

If your cigarette lighter socket is connected to the battery even when the ignition isn’t on, you can charge the battery that way. You need a CONNECT Cig plug or a INDICATOR Cig plug for this.

How many amps does START/STOP provide?  ×

It provides a maximum of 3.8 A and varies according to the needs of the battery.

Spec Sheet

CT5_START_STOP-Productsheet

User manuals

CT5_START_STOP-manual

CT5_START_STOP-safetyinstruction
