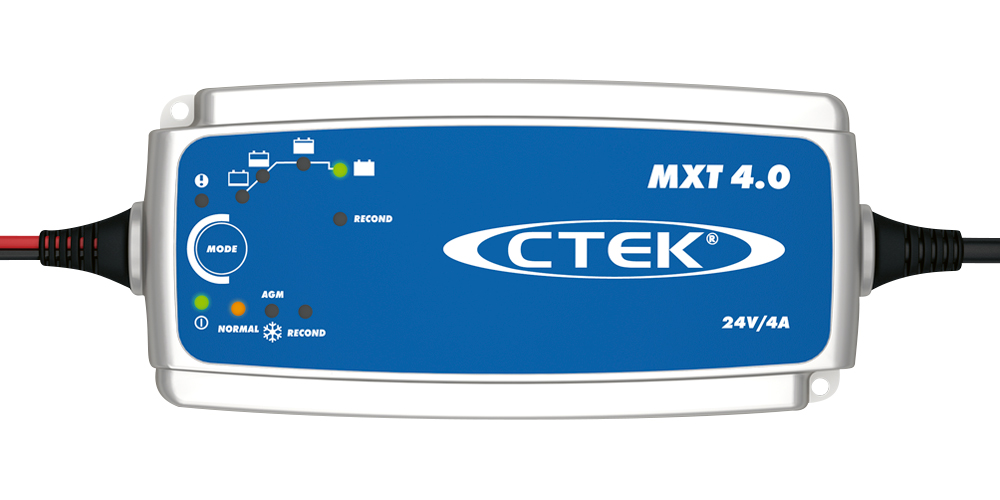

MXT 4.0

  • Charges 24V batteries from 8-100Ah
  • Patented maintenance charge for longer battery life
  • Recond program
  • Comes with Connect – Eyelet and Connect – Clamp connectors
  • Splash and dust proof (IP65)
  • Charges 24V batteries from 8-100Ah
  • Patented maintenance charge for longer battery life
  • Recond program
  • Comes with Connect – Eyelet and Connect – Clamp connectors
  • Splash and dust proof (IP65)
  • 2-year warranty
Enquire
Categories: , , ,

Description

The flexible solution for vehicles and machinery

Easy charging for 24V batteries

The 8 step charger that’s ideal for smaller 24V batteries and maintenance charging for fleets with 24V vehicles.

The MXT 4.0 is a cost effective 8 step charger that delivers 4A to 24V batteries from 8-100Ah and is suitable for maintenance charging up to 250Ah. It can also be used in applications such as back-up systems, piste machinery, industrial cleaning machinery and wheelchairs. The MXT 4.0 features battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for restoring and reconditioning stratified and deeply discharged batteries, an optimised cold charging mode and an AGM battery charging mode. he charger also has a ‘Supply’ mode so it can be used as a power source.

Technical information

Technical information

Input
220–240VAC, 50–60Hz, 1.2A max
Output
28.8V/29.4V/31.4V, 4.0A max
Start voltage
2.0V
Back current drain*
Corresponding to less than 1Ah/month
Ambient temperature
-20˚C to +50˚C
Battery types
All types of lead-acid batteries, 24V, WET, MF, Ca/Ca, AGM, GEL
Battery capacity
8–250Ah
Warranty
2 years
Net weight (unit with cables)
0.8 kg
Insulation class
IP65
Ripple**
Less than 5%



Inside the box

CONNECT CLAMP

Practical clamp solution for your CTEK charger

CONNECT EYELET M8

The easy fit connector for hard to reach batteries

Spec Sheet

MXT 4.0 Productsheet

User Manuals

MXT 4.0 Manual

MXT 4.0 Safety Instructions
